AT91M42800A-33CI

Product Summary

The AT91M42800A-33CI is a member of the Atmel AT91 16/32-bit microcontroller family, which is based on the ARM7T-DMI processor core. This processor has a high-performance 32-bit RISC architecture with a high-density 16-bit instruction set and very low power consumption. In addition, a large number of internally banked registers result in very fast exception handling, making the device ideal for real-time control applications. The AT91 ARM-based MCU family also features Atmel’s high-density, in-system programmable, nonvolatile memory technology. The AT91M42800A-33CI has a direct connection to off-chip memory, including Flash, through the External Bus Interface.

Parametrics

Specifications: (1)Speed: 33MHz; (2)Family: Microcontrollers; (3)Operating Temperature: -40°C ~ 85°C; (4)Peripherals: WDT ; (5)RAM Size: 8K x 8; (6)Series: AT91SAM; (7)Package / Case: 144-BGA; (8)Core Processor: ARM7; (9)Number of I /O: 54 ; (10)Core Size: 16/32-Bit ; (11)Connectivity: EBI/EMI, SPI, UART/USART; (12)Voltage - Supply (Vcc/Vdd): 2.7 V ~ 3.6 V; (13)Oscillator Type: External.

Features

Features: (1)Utilizes the ARM7TDMIARMThumbProcessor Core: high-performance 32-bit RISC Architecture; High-density 16-bit Instruction Set; Leader in MIPS/Watt; Embedded ICE (In-circuit Emulation); (2)8K Bytes Internal SRAM; (3)Fully Programmable External Bus Interface (EBI):Maximum External Address Space of 64M Bytes; Up to 8 Chip Selects; Software Programmable 8/16-bit External Data Bus; (4)8-channel Peripheral Data Controller; (5)8-level Priority, Individually Maskable, Vectored Interrupt Controller: 5 External Interrupts, Including a High-priority, Low-latency Interrupt Request; (6)54 Programmable I/O Lines; (7)6-channel 16-bit Timer/Counter; (8)IEEE 1149.1 JTAG Boundary Scan on All Active Pins; (9)Fully Static Operation: 0 Hz to 33 MHz Internal Frequency Range at VDDCORE = 3.0V, 85℃; (10)2.7V to 3.6V Core and PLL Operating Voltage Range; 2.7V to 5.5V I/O Operating Voltage Range; (11)-40℃ to +85℃ Temperature Range; (12)Available in a 144-lead TQFP Package and in 144-ball BGA Package.

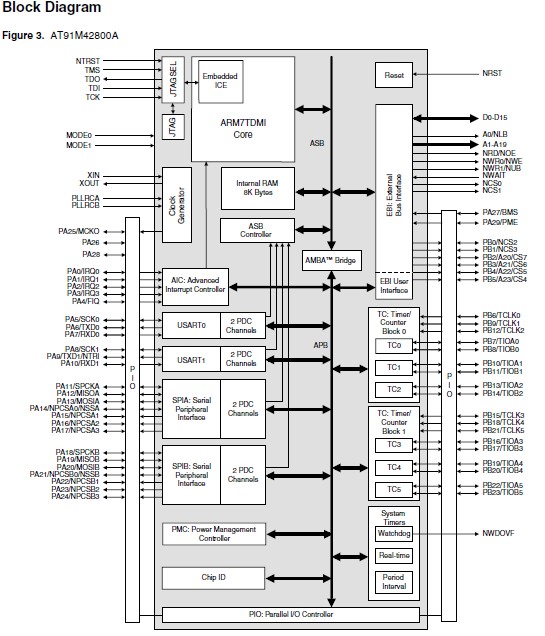

Diagrams
