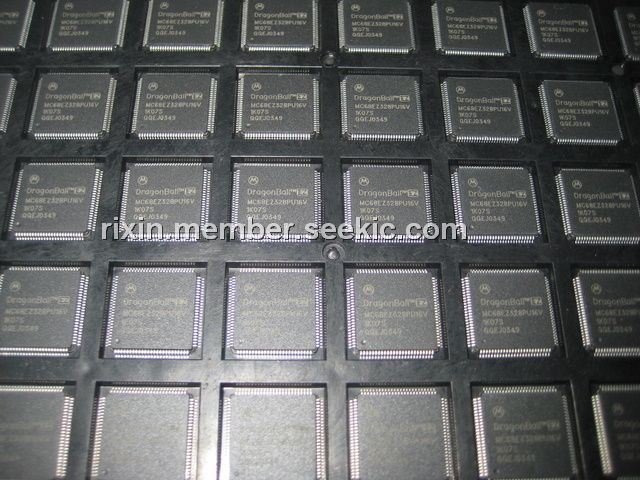

Product Summary
The MC68EZ328PU16V is a second member of the DragonBall family and inherits the display capability of the original DragonBall processor but features a more flexible LCD controller with a streamlined list of peripherals placed in a smaller package. This processor is mainly targeted for portable consumer products which require less peripherals and a more flexible LCD controller.
Parametrics
Absolute maximum ratings:(1) Supply Voltage, VCC: -0.3 to 7.0V; (2)Input Voltage, VIN: -0.3 to 7.0V; (3)Maximum Operating Temperature Range, TA: TL to TH 0 to 70°C; (4)Storage Temperature, Tstg: -55 to 150°C.
Features
Features:(1) static 68EC000 core processor—identical to MC68EC000 microprocessor;(2) system integration module (SIM28-EZ), incorporating many functions typically related to external array logic;(3) system integration module (SIM28-EZ), incorporating many functions typically related to external array logic;(4) 16-Bit general purpose counter / timer;(5) real time clock / sampling timer;(6) built-in emulation function.

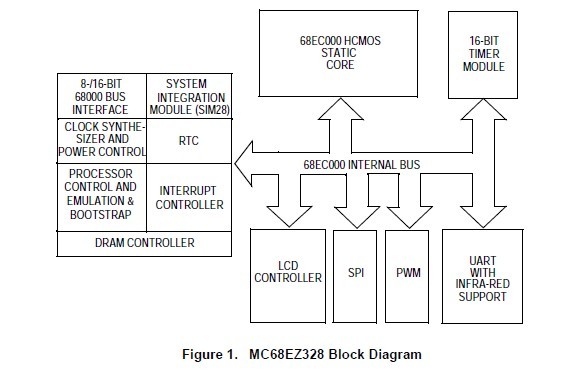

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|
MC68EZ328PU16V |
Other |
Data Sheet |
Negotiable |
|
||||||
