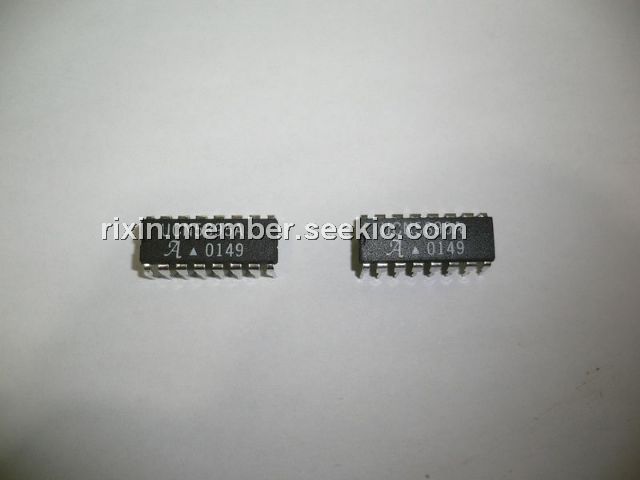

Product Summary
The UCN5895A is designed for applications emphasizing low output saturation voltages and currents to -250 mA per output. The smart high-side octal, driver IC merges an 8-bit CMOS shift register, associated CMOS latches, and CMOS control logic (strobe and output enable) with medium current emitter-follower (sourcing) outputs. Typical applications include incandescent or LED displays (both directly driven and multiplexed), non-impact (i.e., thermal)
printers, relays, and solenoids.
Parametrics
Absolute maximum ratings at TA = +25°C: (1)Output Voltage, VOUT:50 V; (2)Logic Supply Voltage Range, VDD: 4.5 V to 12 V; (3)Driver Supply Voltage Range, VBB: 5.0 V to 50 V; (4)Input Voltage Range, VIN: -0.3 V to VDD + 0.3 V; (5)Continuous Output Current, IOUT: -250 mA; (6)Allowable Package Power Dissipation, PD: See Graph; (7)Operating Temperature Range, TA: -20°C to +85°C; (8)Storage Temperature Range, TS: -55°C to +150°C.
Features
Features: (1)Low Output-Saturation Voltage; (2)Source Outputs to 50 V; (3)Output Current to -250 mA; (4)To 3.3 MHz Data-lnput Rate; (5)Low-Power CMOS Logic & Latches.

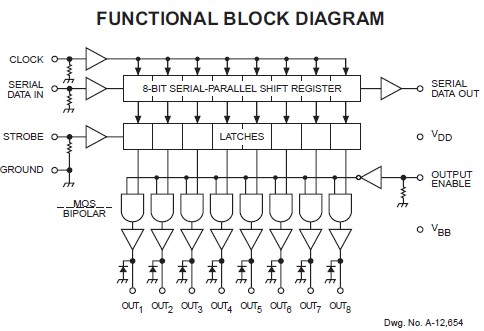

Diagrams
 |
