Product Summary
The OPA627AU is one member of the OPA627 family that designed as one kind of Difet operational amplifiers which provide a new level of performance in a precision FET op amp.It has lower noise, lower offset voltage, and much higher speed. It is useful in a broad range of precision and high speed analog circuitry.The OPA627AU is fabricated on a high-speed, dielectrically-isolated complementary NPN/PNP process. It operates over a wide range of power supply voltage--±4.5V to ±18V.
Parametrics
Absolute maximum ratings:(1)supply voltage:±18V;(2)input voltage range:+VS+2V to -VS-2V;(3)differential input range:total VS+4V;(4)power dissipation:1000 mW;(5)operating temperature:-40°C to +125°C;(6)storage temperature:-40°C to +125°C;(7)junction temperature:+150°C;(8)lead temperature (soldering, 10s):+300°C;(9)lead temperature SOlC (soldering, 3s):+260°C.
Features
Features:(1)low Vos:100 uV max.;(2)low drift:0.8uV/℃ max.;(3)low Ib:5 pA max.;(4)unity-gain stable.And it can be used in precision instrumentation,fast data acquisition,DAC output amplifier,optoelectronics,sonar and ultrasound,high-impedance sensor amps,high-preformance audio circuity and active filters.

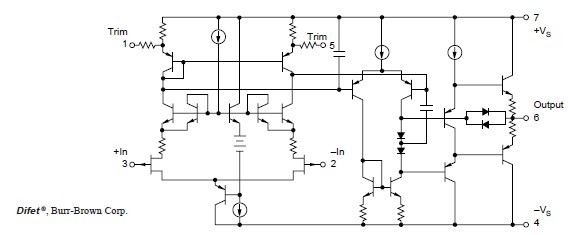

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 OPA627AU |
Texas Instruments |
High Speed Operational Amplifiers Prec High-Speed Difet Oper Amp |
Data Sheet |
|
|
||||||||||||
|
OPA627AU/2K5 |
Texas Instruments |
High Speed Operational Amplifiers Prec High-Speed Difet Oper Amp |
Data Sheet |
|
|
||||||||||||
|
OPA627AUG4 |
Texas Instruments |
High Speed Operational Amplifiers Prec High-Speed Difet Oper Amp |
Data Sheet |
|
|
||||||||||||
|
OPA627AUE4 |
Texas Instruments |
High Speed Operational Amplifiers Prec High-Speed Difet Oper Amp |
Data Sheet |
|
|
||||||||||||
|
OPA627AU/2K5E4 |
Texas Instruments |
High Speed Operational Amplifiers Prec High-Speed Difet Oper Amp |
Data Sheet |
|
|
||||||||||||
