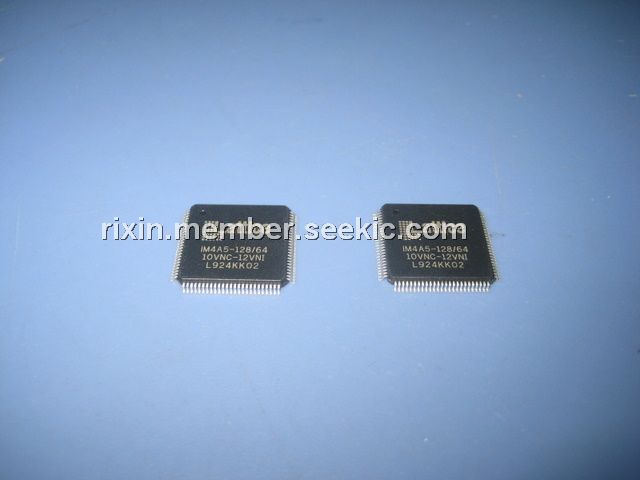

Product Summary
The M4A5-128/64-10VNC offers 20 density-I/O combinations in Thin Quad Flat Pack (TQFP), Plastic Quad Flat Pack (PQFP), Plastic Leaded Chip Carrier (PLCC), Ball Grid Array (BGA), fine-pitch BGA(fpBGA), and chip-array BGA (caBGA) packages ranging from 44 to 388 pins (Table 3). It also offers I/O safety features for mixed-voltage designs so that the 3.3-V devices can accept 5-V inputs, and 5-V devices do not overdrive 3.3-V inputs. Additional features include Bus-Friendly inputs and I/Os, a programmable power-down mode for extra power savings and individual output slew rate control for the highest speed transition or for the lowest noise transition.
Parametrics
Absolute maximum ratings: (1)Storage Temperature: -65°C to +150°C; (2)Ambient Temperature with Power Applied: -55°C to +100°C; (3)Device Junction Temperature: +130°C; (4)Supply Voltage with Respect to Ground: -0.5 V to +7.0 V; (5)DC Input Voltage: -0.5 V to VCC + 0.5 V; (6)Static Discharge Voltage: 2000 V; (7)Latchup Current (TA = -40°C to +85°C): 200 mA; (8)Ambient Temperature (TA), Operating in Free Air: 0°C to +70°C; (9)Supply Voltage (VCC) with Respect to Ground: +4.75 V to +5.25 V.
Features
Features: (1)High-performance, E2CMOS 3.3-V & 5-V CPLD families; (2)Flexible architecture for rapid logic designs: Excellent First-Time-FitTM and refit feature; SpeedLockingTM performance for guaranteed fixed timing; Central, input and output switch matrices for 100% routability and 100% pin-out retention; (3)High speed: 5.0ns tPD Commercial and 7.5ns tPD Industrial; 182MHz fCNT; (4)32 to 512 macrocells; 32 to 768 registers; (5)44 to 388 pins in PLCC, PQFP, TQFP, BGA, fpBGA and caBGA packages; (6)Flexible architecture for a wide range of design styles; (7)Advanced capabilities for easy system integration; (8)Advanced E2CMOS process provides high-performance, cost-effective solutions; (9)Lead-free package options.

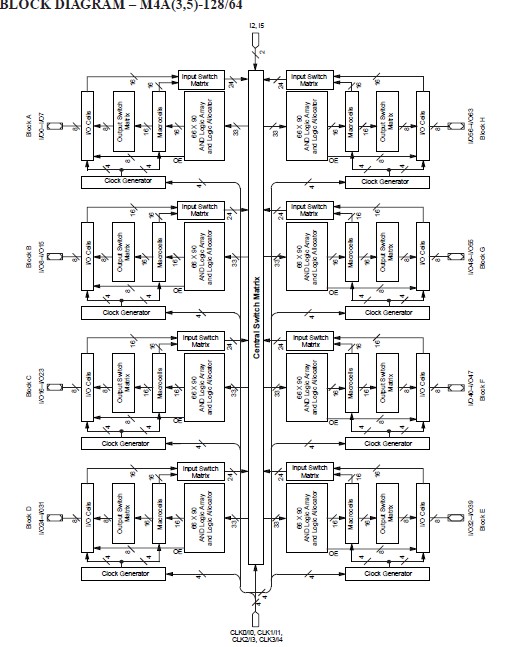

Diagrams
