Product Summary

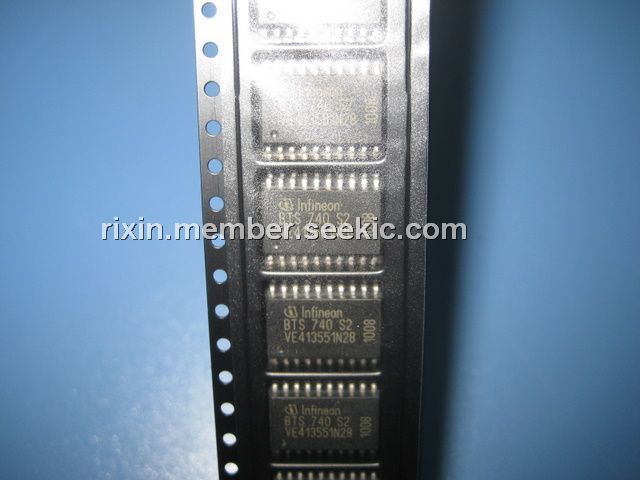

The BTS740S2 is designed as one kind of N channel vertical power MOSFET with charge pump, ground referenced CMOS compatible input, diagnostic feedback and proportional load current sense monolithically integrated in Smart SIPMOS technology that providing embedded protective functions. There are basic functions and protection functions, as well as diagnostic functions for this module.

Parametrics

Absolute maximum ratings:(1)supply voltage:43 V;(2)supply voltage for full short circuit protection:34 V;(3)load current:self-limited A;(4)operating temperature range:-40 to +150°C;(5)storage temperature range:-55 to +150°C;(6)power dissipation (DC) Ta=25°C:3.8 W;(7)input voltage (DC):-10 to +16 V.

Features

Features:(1)CMOS compatible input; (2)Undervoltage and overvoltage shutdown with auto-restart and hysteresis; (3)Fast demagnetization of inductive loads; (4)Logic ground independent from load ground; (5)Short circuit protection; (6)Overload protection; (7)Current limitation; (8)Thermal shutdown; (9)Overvoltage protection (including load dump) with external resistor; (10)Reverse battery protection with external resistor; (11)Loss of ground and loss of Vbb protection; (12)Electrostatic discharge protection (ESD); (13)Proportinal load current sense; (14)Diagnostic feedback with open drain output; (15)Open load detection in OFF-state with external resistor; (16)Feedback of thermal shutdown in ON-state.

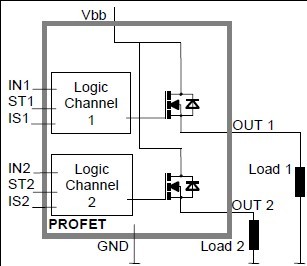

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BTS740S2
BTS740S2
Infineon Technologies
Power Switch ICs - POE / LAN SMART HI SIDE PWR SWITCH 2 CHANNELS
Data Sheet
0-490: $2.51
490-500: $2.03
500-1000: $1.72
1000-2000: $1.63
